3-Roll Plate Rolling Machine

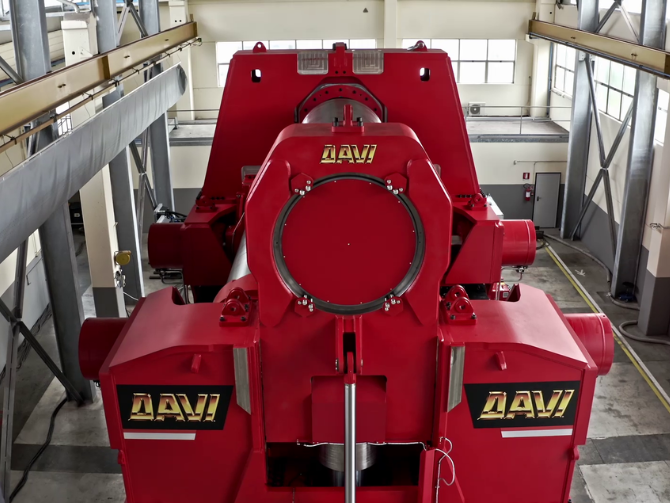

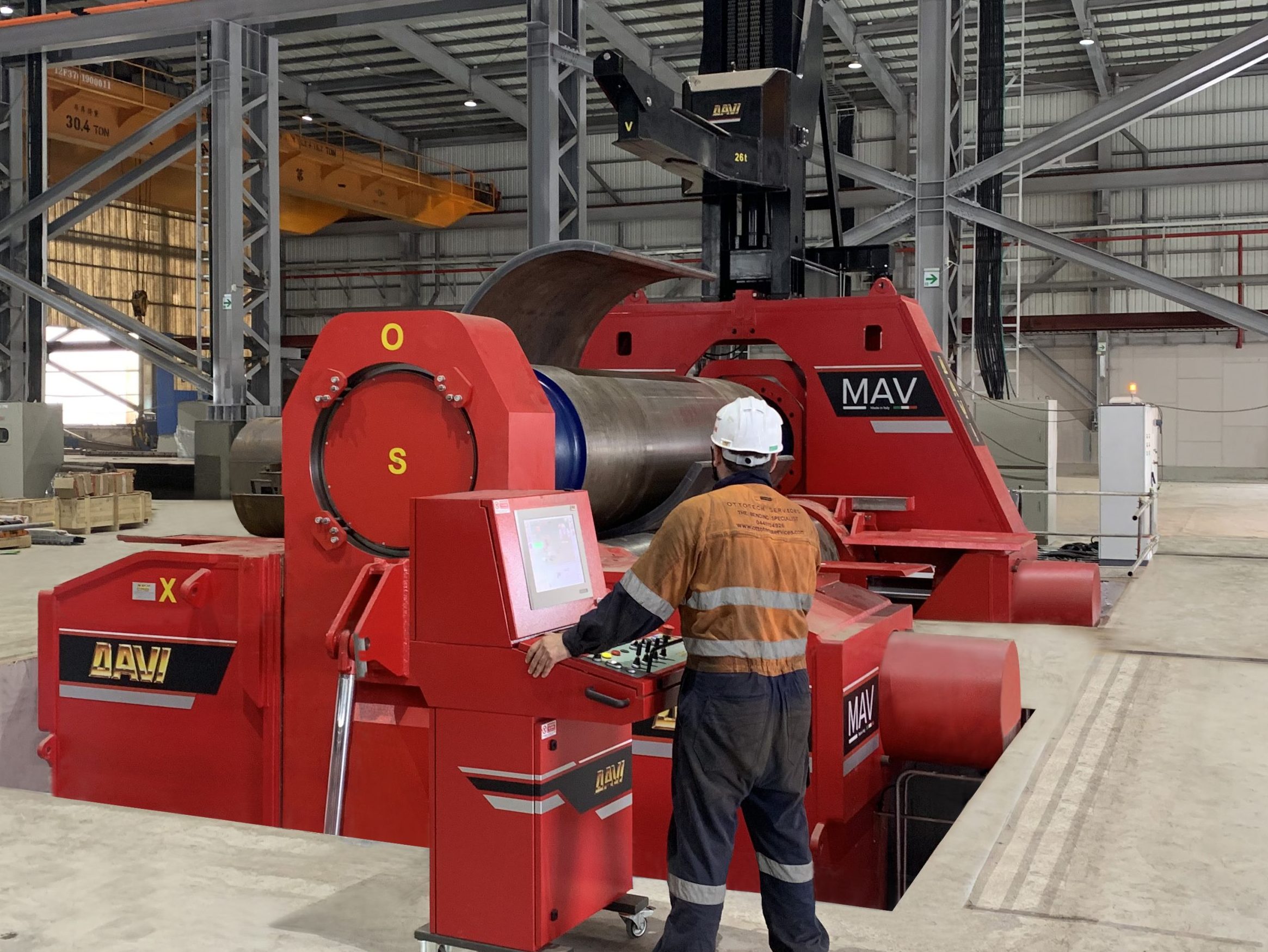

MAV – 3-Roll Plate Rolling Machine
DAVI’s 3-roll variable geometry plate rolling machine (bending machine) delivers exceptional flexibility and precision for forming curved steel plates.:
- Precise Position Control: Driven by motorized rollers and supported by a high-strength rigid frame.
- Accurate Conical Bending: Achieved through advanced roller tilting capabilities.
- Enhanced Product Accuracy: Engineered with a symmetrical mechanical and hydraulic structure.
- Perfect Roller Parallelism: Maintained by the patented Servo-Tronic© control system.
MAV Variable Geometry Technology features a multi-gearbox design that significantly improves operational convenience and ease of maintenance. With independent, high-precision control over roller positioning and symmetry, it ensures maximum reliability, efficiency, and flawless forming performance across all types of plate bending applications.
Features
- BEST ROLLS PARALLELISM thanks to patented Servo-Tronic© system
- MAXIMUM FLEXIBILITY thanks to three motorized rolls with flat gearboxes
- MAXIMUM PRECISION thanks to hydraulic symmetry and side cylinders design
- SHORTEST FLAT END AND - thanks to ideal torque transmission and rolls synchronization
- SUPERIOR CONE BENDING - thanks to three tilting rolls
- SUPERIOR RE-ROLLING - thanks to sturdy and compact frame
- GREAT OPERABILITY AND - thanks to multi-gearbox configuration for easy maintenance
- Precise positioning and independent control of rolls for enhanced performance
- Reliable and efficient solutions for a wide range of plate bending applications
Specifications
TECHNICAL FEATURES
Shortest Flat End & Safer Operations
Achieve ultimate plate grip and safety through ideal torque transmission and precise roll synchronization.
All-Rolls-Drive Technology: Motorized top and side rolls guarantee optimum torque transmission and even power distribution between hydraulic motors.
Brakeless & Synced System: Eliminates mechanical brakes. Roll speeds are automatically and hydraulically synchronized for smooth operation.
Shortest Flat End: Precise positioning at the tangent point delivers the industry’s shortest possible flat ends on the final product.
Anti-Slipping Safety: Prevents any slipping or falling of the plate during the pre-bending phase, ensuring maximum workshop safety.
High-Accuracy Pre-Bending: Motorized rolls allow the top and pinching side rolls to almost overlap, granting the highest accuracy.
Superior Re-rolling Performance
The market’s sturdiest and most compact frame acts as the robust backbone, transmitting all forming stresses efficiently to the foundations.
Heavy-Duty Compact Frame: Offers maximum rigidity and stability, allowing the machine to withstand heavy-duty plate forming with ease.
Increased Side Rolls Stroke: The robust structural design maximizes the side roll stroke and interaxis distance for wider application ranges.
Shallower Pit Construction: Built-in reinforcement beams (intra-frame design) eliminate bulky base platforms, significantly reducing foundation pit costs.

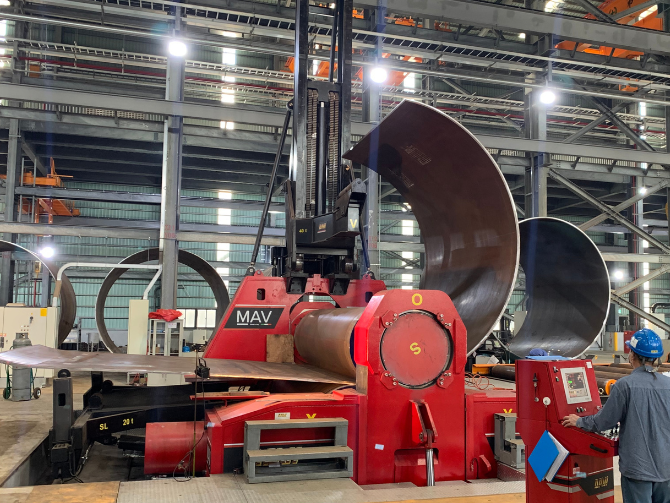

Superior Cone Bending Capacity
Guarantees unparalleled performance and speed in continuous cone rolling operations.
Fully Tilting Rolls: Three fully tilting rolls make complex cone bending operations exceptionally accurate, smooth, and swift.
Stress-Free Tilting: Pendular shaft-mounted gearboxes allow stress-free roll tilting up to 100 mm per 3 meters of roll length.
Maximum Precision
Engineered to deliver ultimate forming accuracy and maximum equipment durability under any production environment.
Frame-Mounted Cylinder Cans: Cylinders rest on thick frame plates instead of weak bolts, maximizing available force to roll tight cans.
Full Hydraulic Symmetry: Achieves perfect rolling accuracy without constant electronic adjustments, vastly increasing component durability.
Even Load Distribution: Equal “push-push” or “pull-pull” cylinder forces at both ends guarantee a perfectly uniform load along the forming plate.
